A deck project always starts out simple enough. You have your measurements, maybe a sketch or two and a decent idea of what materials you’ll need. Then the foundation depth requirements come up, and the whole scope of the work changes. What was going to be a weekend project with concrete blocks and posts has turned into something that needs some excavation equipment and much more concrete than you budgeted for.
Every deck footing in New Jersey has to go down at least 36 inches below grade level. During the winter, any water that’s trapped in the soil is going to freeze and expand, and if your footings are too shallow, that frozen ground will push them right up. Some decks just get warped boards or uneven surfaces. Others completely collapse. Most homeowners never learn about the 36-inch requirement until they’ve already started digging, or worse, when the inspector shows up and tells them to start over.
Foundation problems are responsible for more deck collapses than anything else, and I see the aftermath of bad footings all the time. Insurance claims for deck collapses can run into six figures when someone gets hurt. Your building department is going to measure those footings before it lets you move forward with construction. Do it right the first time, and you’ll save yourself from having to tear apart a brand new deck just to dig deeper holes and pour new footings.
Let’s dig into what you need to know about frost line requirements for your deck!

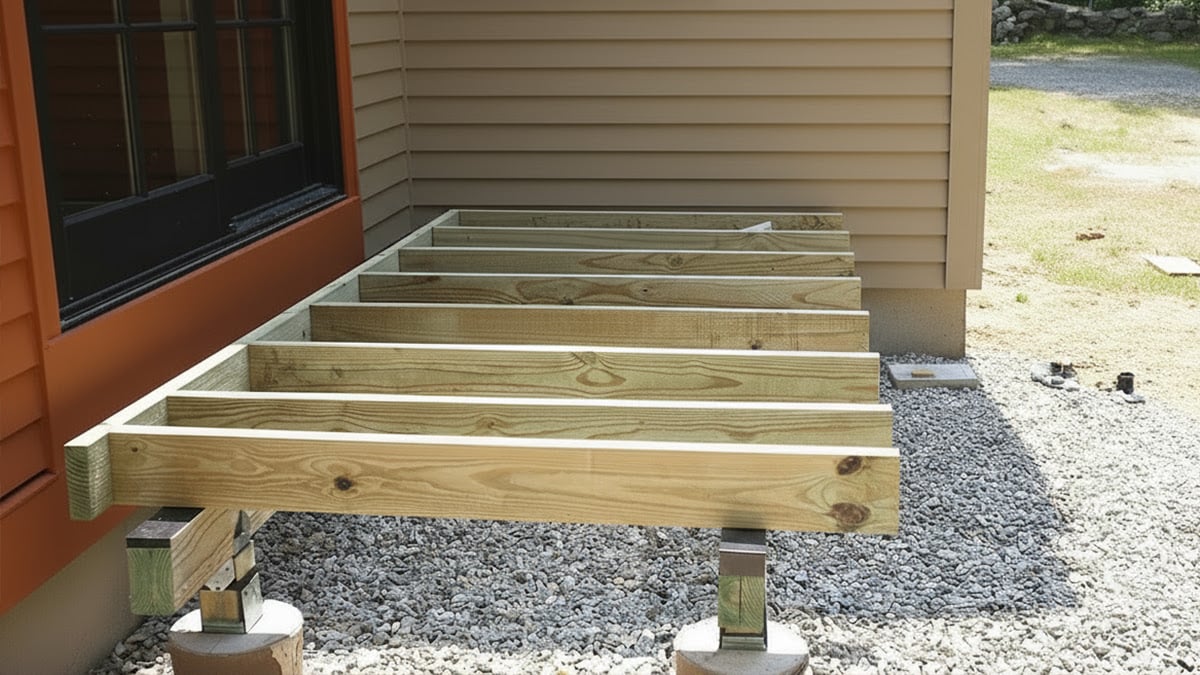

Why New Jersey Requires The Full Depth
New Jersey settled on the 36-inch depth requirement after decades of structural failures and expensive repairs. The reason for this exact number has everything to do with how water behaves when it freezes underground. Water expands about 9% in volume as it turns to ice, and this expansion generates thousands of pounds of upward force beneath the deck footings.
The mid-1900s taught builders in the Northeast some expensive lessons about frost depth. They were pouring footings at 24 inches and then watching their structures move and fail every spring when the ground thawed. The state engineers eventually began tracking soil temperatures at different depths throughout New Jersey. Their research revealed that frost usually penetrates somewhere between 30 and 35 inches during an average winter here.
The state calls for 36 inches instead of 35 for a simple reason – that extra inch gives us a bit of a safety buffer. Winter temperatures change from year to year, and the northern counties like Sussex and Warren sometimes experience frost penetration even deeper than the state average during especially brutal cold snaps.
Footings that don’t reach the right depth will experience frost heave that pushes them upward. Your deck posts might rise 3 or 4 inches throughout the winter months. The deck boards will start to buckle at the points where they meet. The railing posts will slowly work themselves loose from their mounting brackets over time. Even the door from your house to the deck won’t close right anymore because the entire structure has shifted out of alignment.
Some contractors will recommend alternatives like shallow footings paired with thick gravel bases underneath. They’ll insist that the gravel gives adequate drainage to stop any frost heave problems. It might work fine in Virginia or Maryland, where the winters are milder. New Jersey winters freeze down much too deep and last far too long for that strategy to work. The frost will eventually reach those footings, and you’ll see the problems develop within just a few years.

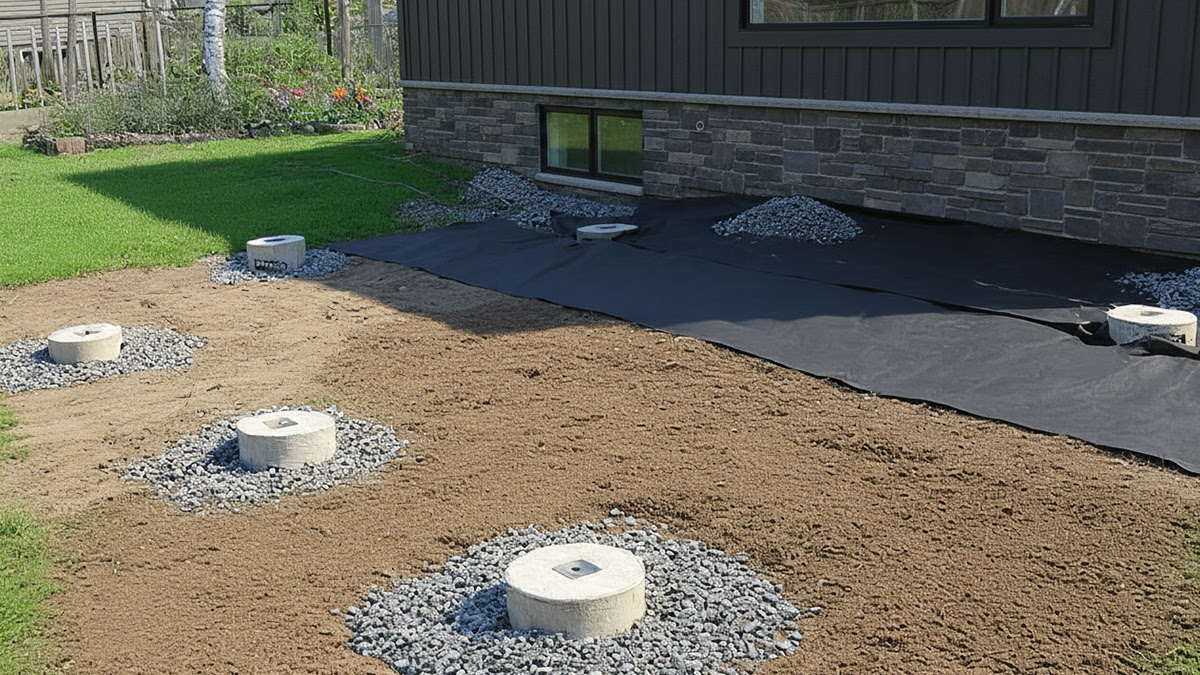

Standards for Your Concrete Footings
The concrete you pour into those holes has to meet a few important standards, and depth is the beginning of what you need to know. New Jersey actually has a particular requirement for deck footings – they need to be at least 12 inches in diameter. A wider base like this helps distribute the weight of your entire deck across a bigger area of soil. The principle is like how snowshoes spread your weight across snow compared to normal boots that just sink right through.
For concrete strength, you’re going to need a mix that reaches at least 2,500 PSI after it completely cures. Most of the contractors I work with actually like to use 3,000 to 3,500 PSI concrete for deck footings, though. The extra strength matters – it helps your footings last much longer and gives them much better resistance to all the freeze and thaw cycles we experience in this area. And the cost difference is minimal – we’re talking maybe a few extra dollars per bag at most.
Temperature is another important factor that most homeowners don’t think about when they’re planning their concrete pour. Late November is pushing your luck with outdoor concrete in New Jersey. The concrete needs to stay above 50 degrees F for at least the first 48 hours as it’s curing. If the temperature drops below that threshold, the chemical reaction that hardens the concrete slows down to a crawl, and you’ll have footings that are much weaker than they should be.
Experienced contractors have a clever technique called bell-bottoming, where they widen out just the bottom portion of the hole to create an upside-down mushroom shape. The extra width at the base gives you more stability, and you don’t have to dig the entire hole any wider than necessary.
Residential decks usually benefit from adding rebar reinforcement to the concrete mix. A basic configuration with a couple of vertical bars tied together with a horizontal ring tends to work well for most applications. Of course, bigger decks or any deck that’s going to support something heavy, like a hot tub, are going to need considerably more reinforcement than a basic 10-by-10 platform deck would.
Bagged concrete actually works better than truck delivery for smaller deck projects. You have much better control over the consistency of your mix, and you can work at whatever pace makes sense for you without feeling rushed by a driver who needs to move on to the next job.

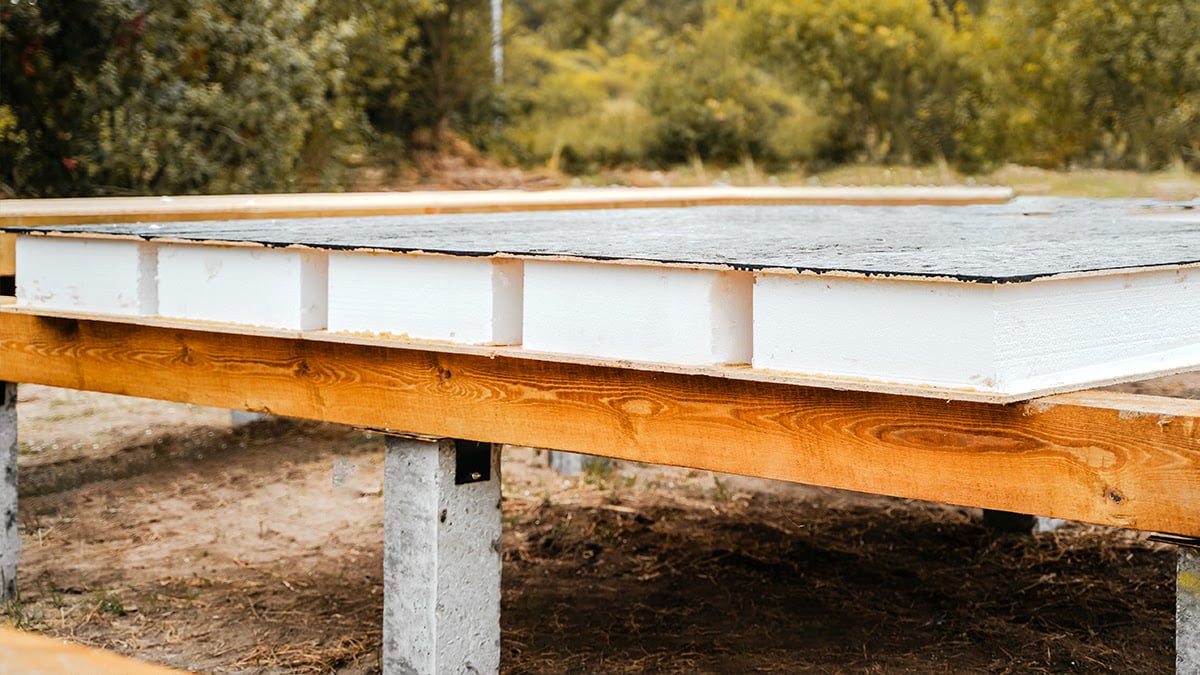

What You Need for Deck Permits
Deck foundation permits can be a real headache when you don’t know what you’re up against. Any deck that connects to your house is going to need a permit, and it doesn’t matter if it’s only 6 inches off the ground or 6 feet. Freestanding decks have slightly different requirements, though – they only need permits when they’re more than 30 inches tall. Either way, get this paperwork done before you break ground.
The inspection process has to happen in a very particular order, and inspectors won’t let you jump around or combine steps. An inspector has to physically see your footing holes before you’re allowed to pour even a drop of concrete into them. Most inspectors will bring a measuring rod to check the depth themselves, though some may ask you to drop a tape measure down there as they take photos for their records. Once you’ve poured your concrete, you need a completely separate inspection just to check that everything is at the right depth and in the right place. After that’s approved, you can finally build your posts and beams, and they need their own structural inspection before you can move forward.
A few issues usually trip homeowners up and cause failed inspections. Narrow holes are a common problem – even if you’ve dug down to the exact needed depth, an inspector will reject holes that aren’t wide enough to meet code. Water is another big issue. Any water pooled at the bottom of your holes means an automatic failure, and you’ll have to pump everything dry and wait for the inspector to come back. Loose soil causes problems, too. Inspectors will make you dig out all of it until you hit completely firm, undisturbed ground if the bottom of your hole has disturbed or crumbly soil.
Timing can be a challenge once you’ve dug your holes. Let’s say that you dig everything on Monday morning, and the earliest inspection slot that’s available is Friday afternoon. Those four days give your nicely dug holes time to partially collapse, particularly if you have sandy or loose soil. Coastal areas see this all the time because the sandy soil just won’t hold its shape for very long. When the inspector finally arrives, you have to dig everything back out to the right dimensions before they’ll sign off on it if there are any collapsed sections.
Local municipalities love to stack their own requirements on top of whatever the state already mandates. Shore communities are notorious for this – they’ll ask for footings that go much deeper than standard because of the sandy soil conditions and flood zone requirements. I’ve seen some towns ask for fully engineered drawings for any deck that exceeds a certain square footage, even if the state code doesn’t require it. Each town has its own extra requirements and extra hoops to jump through.
Skip the permits, and you leave yourself open to some real consequences. Towns can impose stop-work orders that have per-day fines that add up very fast. Extreme cases give them the legal authority to make you do a full demolition and removal of any unpermitted structures, and yes, they’ll make you pay for the demolition too!

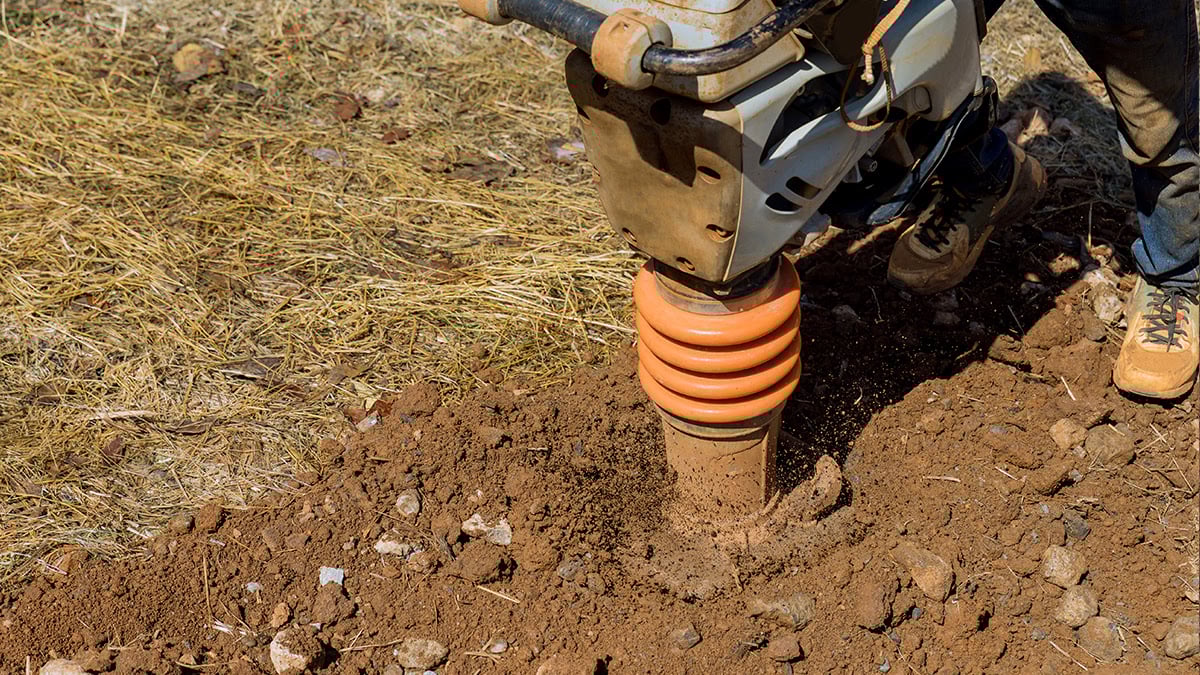

How Soil Conditions Affect Your Foundation
Even after you’ve figured out all the permit requirements and checked every box on the application, the actual property conditions can still present pretty big challenges. Every piece of land has its own features, and what works for one site might not work at all for another location just a few miles away.
Clay soil presents one of the most frustrating challenges for deck builders throughout the middle of Jersey. The soil expands quite a bit whenever it gets wet and then shrinks back down during dry periods, and all that constant movement puts tremendous stress on your footings, which eventually causes cracking. The standard 36-inch depth probably won’t cut it in these conditions. Most contractors usually have to dig down to at least 42 inches and sometimes even 48 inches just to get below the zone where all that expansion and contraction happens. On top of all that extra digging, you’ll need to install proper drainage systems around the foundation to redirect water away from the area.
The coastal areas present very different soil conditions that are going to need a very different strategy. Sandy soil won’t hold its shape at all once you start digging, and your measured holes will want to collapse inward before you can get a chance to set the forms or pour any concrete. The best strategy usually involves much wider footings than you’d normally use, and this helps stop the entire deck structure from settling into the ground slowly over time. The extra width does a great job of distributing the load across more of the surface area, though it does make the excavation process more complicated and time-consuming.
High water tables are a whole different headache for construction projects. When a contractor digs down 3 feet for what should be a standard footing and the hole quickly fills with water, it turns into a muddy disaster. At that point, most crews have no choice but to rent a well-point dewatering system that continuously pumps water out as they work. Some experienced contractors have figured out how to pour concrete directly underwater with certain types of tremie pipes, though it takes serious skill and years of practice to get it right.
The northwestern counties have bedrock lurking much closer to the surface. A contractor might hit rock at just 24 inches deep, which creates its own set of problems. The code won’t let you just pour a shallow footing on top of the rock and move on with the project. You’ll need to bring in a structural engineer to design an anchorage system where you’ll drill into the rock and install certain types of bolts or pins. It’s much more work and expense than a standard footing, though, at least you can be confident that the foundation will never move or settle once it’s anchored to bedrock.
Contact Our Team Today to Start Your Project
A deck that’s built properly takes patience, and yes, you do need to dig 3 feet down just to lay the foundation. Once you’ve seen a few foundations fail, though (with the boards starting to sag, the railings turning wobbly, and the entire structure slowly pulling away from the house bit by bit), those extra inches of excavation start to look like the best insurance policy you could buy. Every time homeowners cut corners on foundation work, they’re placing a bet against Mother Nature, and here in New Jersey, she has a way of collecting on those bets sooner or later.
The most successful deck projects I see come from homeowners who know that quality foundations take time and money right from day one. These homeowners get their permits lined up well in advance because they know inspection schedules book up fast once the weather warms up, and suddenly everyone in town wants to build at the same time. They also know that if they hit unexpected bedrock or groundwater during excavation, the choice to bring in an engineer or switch over to helical piers isn’t admitting defeat – it’s actually ensuring that their deck will still be standing strong when their kids are out there teaching their own children how to flip burgers on that same outdoor grill decades later.
The value of a well-built deck is that it turns into a place where memories can happen safely year after year. With a very sturdy foundation underneath, you never have to worry about whether the structure can support your daughter’s graduation party, and you won’t lie awake worrying when this winter’s freeze-thaw cycles finally cause serious damage. Once you have built the foundation correctly, it just turns into something that you never need to worry about – it does its job quietly as life unfolds on the deck above it.
